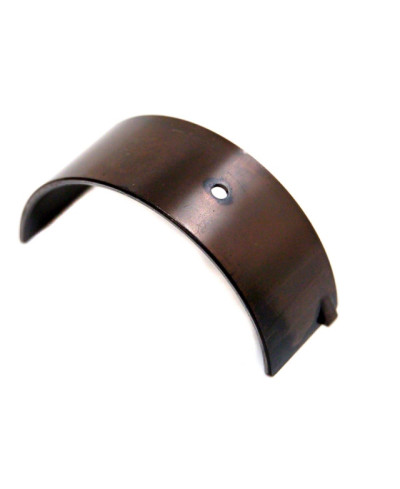

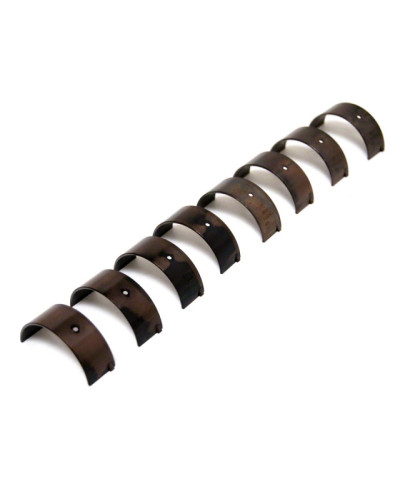

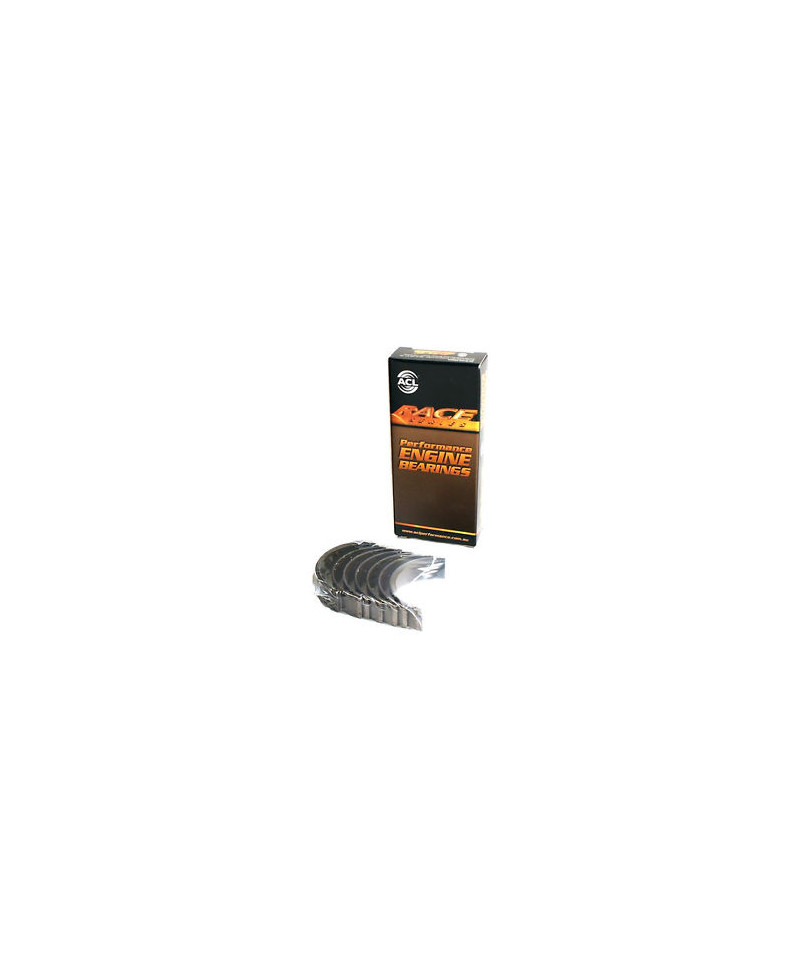

SET COUSSINETS BIELLE CA18DET ACL

SET COUSSINETS BIELLE CA18DET ACL

79,00 €
TTC
Neuf

SET COUSSINETS RENFORCES CA18DET ACL - 4B1630H-

ACL
Quantité
Liste de souhaits
Comparer
Derniers articles en stock
Méthode de paiement
4B1630H-STD

Set complet coussinets de bielle moteur

Application: Nissan 200SX S13 CA18DET

iDisponibilté :

- cote standard

- +0.025 plus serré ou - 0.025 moins serré .

- +0.25 cote réparation

- +0.50 cote réparation



 ENGINE BEARINGS

CON ROD BEARING SET

MAIN BEARING SET
Part# Part#
4B1630H

 		 4B1630HX

 		 5M1633H

 		 5M1633HX


Sizes STD, .025, .25, .50 STD STD, .025, .25, .50 STD
Oil Clearance Standard + 0.001" Extra Standard + 0.001" Extra
Half Type Identical Halves Upper & Lower
Material

Tri-metal Hardened steel backs

 Tri-Metal
Min Std Shaft Size

1.7701" / 44.961mm

2.0847" / 52.951mm
Max Std Shaft Size

1.7706" / 44.974mm

2.0852" / 52.964mm
Min Std Tunnel Size

1.8898" / 48.000mm

2.2305" / 56.654mm
Max Std Tunnel Size

1.8903" / 48.013mm

2.2310" / 56.667mm
Max Wall at Crown

0.0593" / 1.505mm

0.0587" / 1.492mm

0.0719" / 1.827mm

(1633H/HX)
0.0721" / 1.832mm

(1635H/HX - Flange)

0.0714" / 1.814mm

(1633H/HX)

0.0716" / 1.819mm

(1635H/HX - Flange)
Max Overall Length

0.732" / 18.60mm

0.787" / 20.00mm   (1633H/HX)

1.100" / 27.95mm   (1635H/HX - Flange)
Notes

Diagram
(Top View)

1633H & HX - Positions 1, 2, 4, 5

1635H & HX - Position 3

Part#   Material
Sizes   Notes
4B1630H-STD

Fiche technique

Catégorie
Moteur
Code moteur
CA18DET
Neuf
